Teaching a Neural Network to Hear a Failing Bearing

Created on June 15, 2026

2026   ·   machine-learning   signal-processing   predictive-maintenance   deep-learning   ·   project

How I built an end-to-end predictive-maintenance pipeline — and why hitting 100% accuracy made me trust it less.

Walk through any refinery, power plant, or pump station and you’re surrounded by machines that spin: motors, compressors, turbines, gearboxes. Almost all of them ride on bearings — and when a bearing starts to fail, it doesn’t send a calendar invite. A cracked race or a spalled ball can take a multimillion-dollar compressor offline in minutes, halt a production line, or turn into a genuine safety incident.

The good news: a failing bearing whispers before it screams. Long before a human can hear or feel anything, the vibration signature changes in tiny, repeating ways. Predictive maintenance (PdM) is the art of listening for those whispers. This is the story of building a system that does exactly that — and of a plot twist that taught me more than the model did.

This article is the narrated version of a project on GitHub: github.com/godot107/predictive-maintenance-cwru. Everything here is reproducible from that repo.

The data: four bearings, four fates

I used the Case Western Reserve University (CWRU) Bearing Dataset, a benchmark in the condition-monitoring world. An accelerometer sampled at 12 kHz records the vibration of a motor’s drive-end bearing under four conditions:

  • Normal (healthy)
  • Inner Race fault
  • Ball fault
  • Outer Race fault

The goal: feed the model a slice of raw vibration and have it name the fault.

But you can’t just throw a wiggly line at a neural network and hope. The signal has to be transformed into something a network can see. That’s where two analogies make everything click.

Two analogies that make signal processing click

🥤 The Fourier Transform is a smoothie un-blender

A raw vibration signal is like a smoothie: strawberry, banana, and spinach all blended into one. Looking at the smoothie, you can’t tell what went in.

The Fast Fourier Transform (FFT) is a magic blender run in reverse. Pour in the smoothie and it hands back the ingredients — “30% strawberry, 50% banana, 20% spinach.” For a bearing, those ingredients are frequencies, and a fault adds a specific new “flavour” that shouldn’t be there.

How it works in code (and physics)

Physically, when a bearing is healthy, it hums along at a smooth, predictable baseline. But when a crack forms on the inner race, every time a ball bearing rolls over that crack, it creates a tiny microscopic “click” or impact. Because the motor is spinning at a constant speed, these clicks happen at a very regular interval (a specific frequency).

The FFT takes the messy, noisy vibration wave and mathematically isolates that exact repeating “click”, plotting it as a giant spike on a graph. In Python, isolating these frequencies is incredibly elegant using NumPy’s real-valued FFT (rfft):

import numpy as np

# 'segment' is a slice of our raw vibration array
# 'fs' is our sampling rate (12,000 Hz)
n = len(segment)

# 1. Get the X-axis (the exact frequency values in Hz)
frequencies_hz = np.fft.rfftfreq(n, d=1.0 / fs)

# 2. Get the Y-axis (the magnitude/loudness of each frequency)
magnitude = np.abs(np.fft.rfft(segment)) * (2.0 / n)

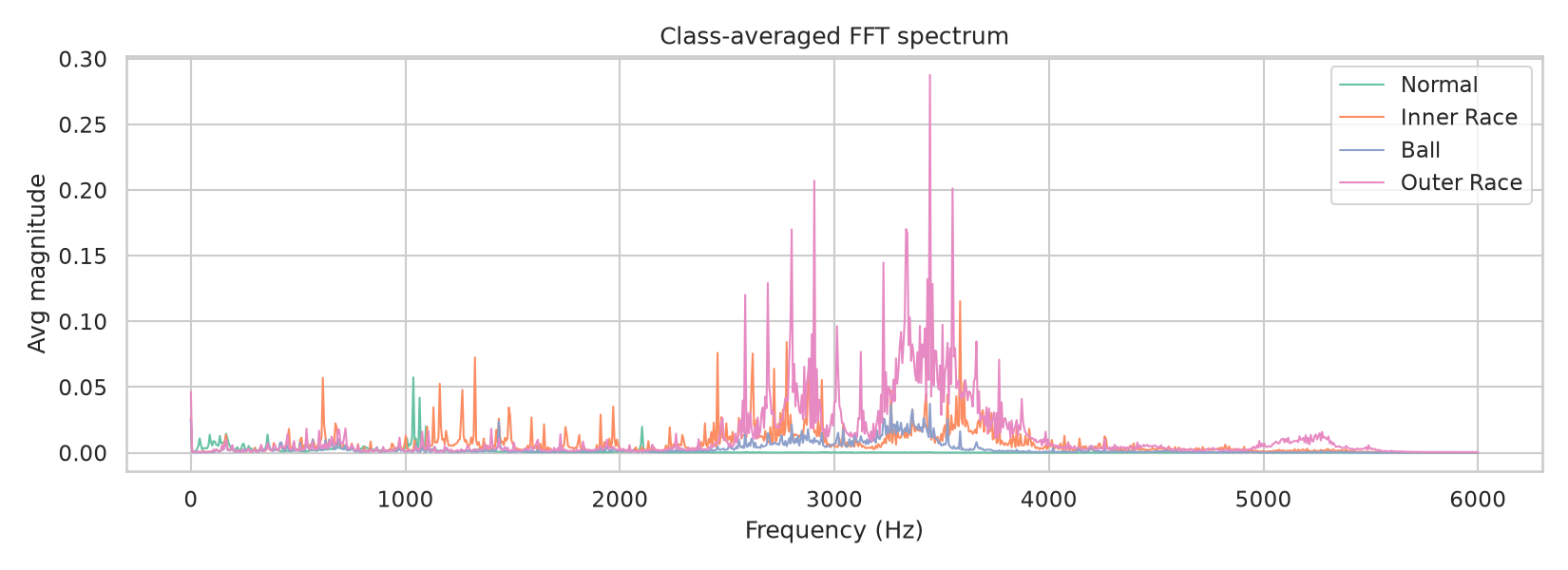

Average the FFT across many windows and the fingerprints jump out — the faults light up high-frequency bands the healthy bearing never touches:

🎼 A spectrogram is sheet music

The FFT has a blind spot: it tells you which notes were played, but not when. Imagine being told a song contains a C, an E, and a G — but not the rhythm. You’d never recognize the tune.

A spectrogram puts the notes back on a timeline. It’s sheet music: time runs left to right, frequency runs bottom to top, brightness is loudness. Now a fault isn’t a single frequency — it’s a pattern of impacts repeating over time, exactly the kind of 2-D structure a Convolutional Neural Network (the tech that recognizes cats in photos) is built to spot.

So the high-level pipeline became:

Raw vibration  ─▶  Spectrogram  ─▶  2-D CNN (on GPU)  ─▶  Fault diagnosis

Under the hood: the CNN architecture

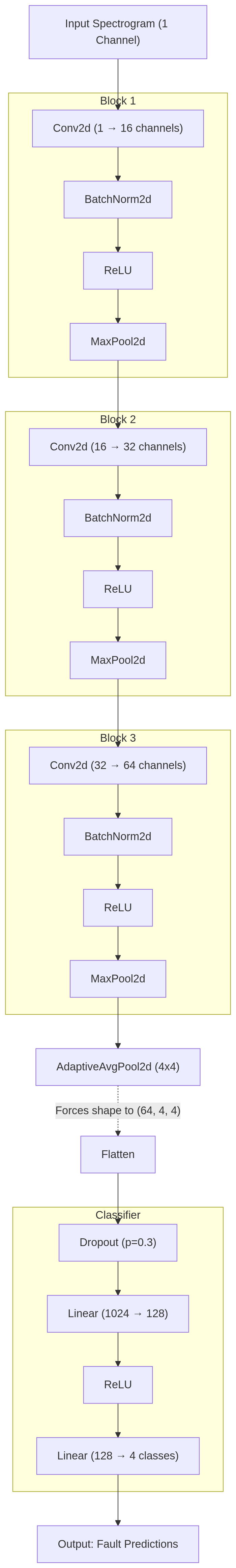

To make the “2-D CNN” step concrete, here is the exact dataflow of the model. It’s a lightweight, 3-block architecture (only ~155,000 parameters) that uses an Adaptive Average Pooling layer. This pooling layer is a crucial design choice: it forces the feature map to a fixed 4×4 size before the classifier, meaning the network won’t break if you feed it slightly different sized spectrograms.

Design consideration: avoiding the “matrix mismatch” error

If you are new to building CNNs, the hardest part is usually preventing RuntimeError: shape cannot be multiplied when transitioning from Convolutional layers to Linear layers. This architecture solves that using two rules:

  1. The Plumbing Rule: When stacking Conv2d layers, only the channels (depth) need to connect perfectly. Notice how Block 1 outputs 16 channels, and Block 2 takes in 16 channels. It’s like plumbing — the output pipes must match the input valves.
  2. The “Cheat Code” (Adaptive Pooling): MaxPool2d halves the height and width of the spectrogram at every block. Normally, you have to manually calculate the exact final grid size to feed into the Linear layer. If your input image changes size, the math breaks and the code crashes. By inserting AdaptiveAvgPool2d((4, 4)) right before flattening, we tell PyTorch: “I don’t care what the height and width are at this point. Mathematically squish whatever you have into a 4×4 grid.” This permanently locks our flattened size to exactly 64 channels × 4 × 4 = 1024, completely eliminating shape mismatch errors.

Academic credit: The math that makes “Adaptive Pooling” possible — allowing CNNs to accept images of any size without breaking the fully connected layers — was pioneered by Kaiming He et al. in the landmark 2014 paper Spatial Pyramid Pooling in Deep Convolutional Networks for Visual Recognition. Furthermore, the practice of heavily pooling spatial dimensions to drastically reduce the parameter count of Linear layers was famously introduced by Lin et al. in the 2013 paper Network In Network.

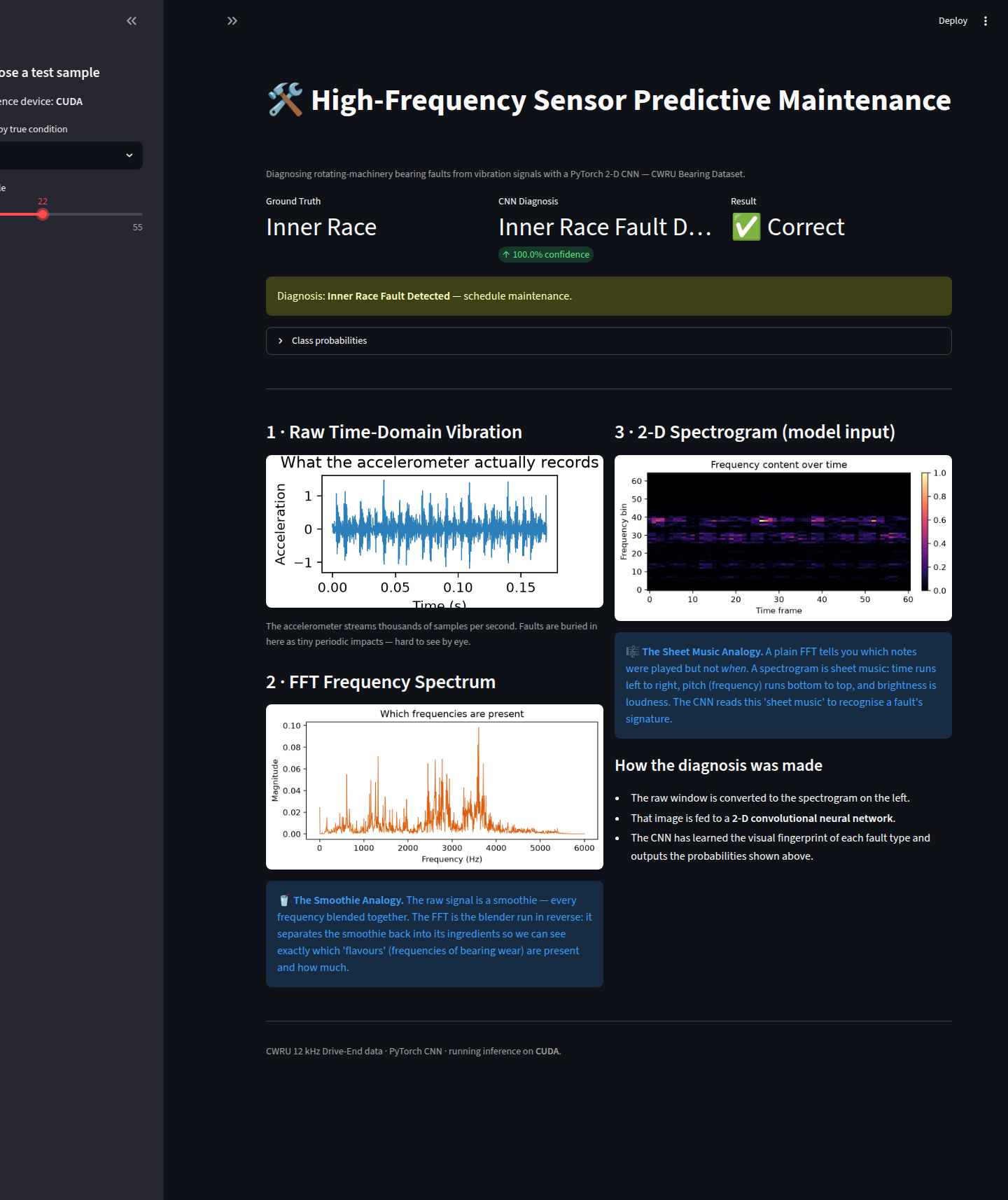

I wired it up in PyTorch, trained on an NVIDIA GPU, and wrapped it in a Streamlit dashboard that shows the raw signal, the FFT, the spectrogram, and the model’s live verdict. It worked. The test accuracy came back at 100%.

🚀 Try it live: the dashboard is deployed on Streamlit Community Cloud — launch the live demo and diagnose a bearing fault yourself.

And that’s where the project got interesting.

The plot twist: when 100% is a red flag

A perfect score should make you suspicious, not proud. Real-world classifiers don’t hit 100% — so either the problem is trivially easy, or something is leaking.

Classic overfitting looks like high training accuracy, low test accuracy — a gap. But here training and test were both ~100%, with no gap. That pointed at the second culprit: data leakage.

Here was the bug in my evaluation. Each fault class is one long continuous recording. I chopped it into overlapping windows and then split those windows randomly into train and test. Because the windows overlapped, near-duplicate slices ended up on both sides of the split. The model wasn’t generalizing — it was recognizing windows it had half-seen in training. The test set was lying to me.

So I rebuilt the evaluation the way it should have been done from the start:

  1. Leakage-free splitting — cut each raw recording into train/validation/test spans by time (with a guard gap) before windowing, so no slice is shared.
  2. A validation set + early stopping — stop on validation loss, report on a test set the model never touched.
  3. 5-fold cross-validation — for a stable estimate instead of one lucky split.

The payoff was immediate and humbling. With honest splitting, the early training epochs now showed training accuracy at 1.00 while validation sat at 0.25 — random chance. That genuine overfitting had been completely hidden by the leaky split. The methodology upgrade was doing real work.

The deeper twist: it was still 100%

Here’s what I didn’t expect. Even after removing every trace of leakage, and across all five cross-validation folds, the score held: 1.000 ± 0.000.

So leakage wasn’t the main story. To understand why, I did what I should have done first: I stopped modeling and explored the data.

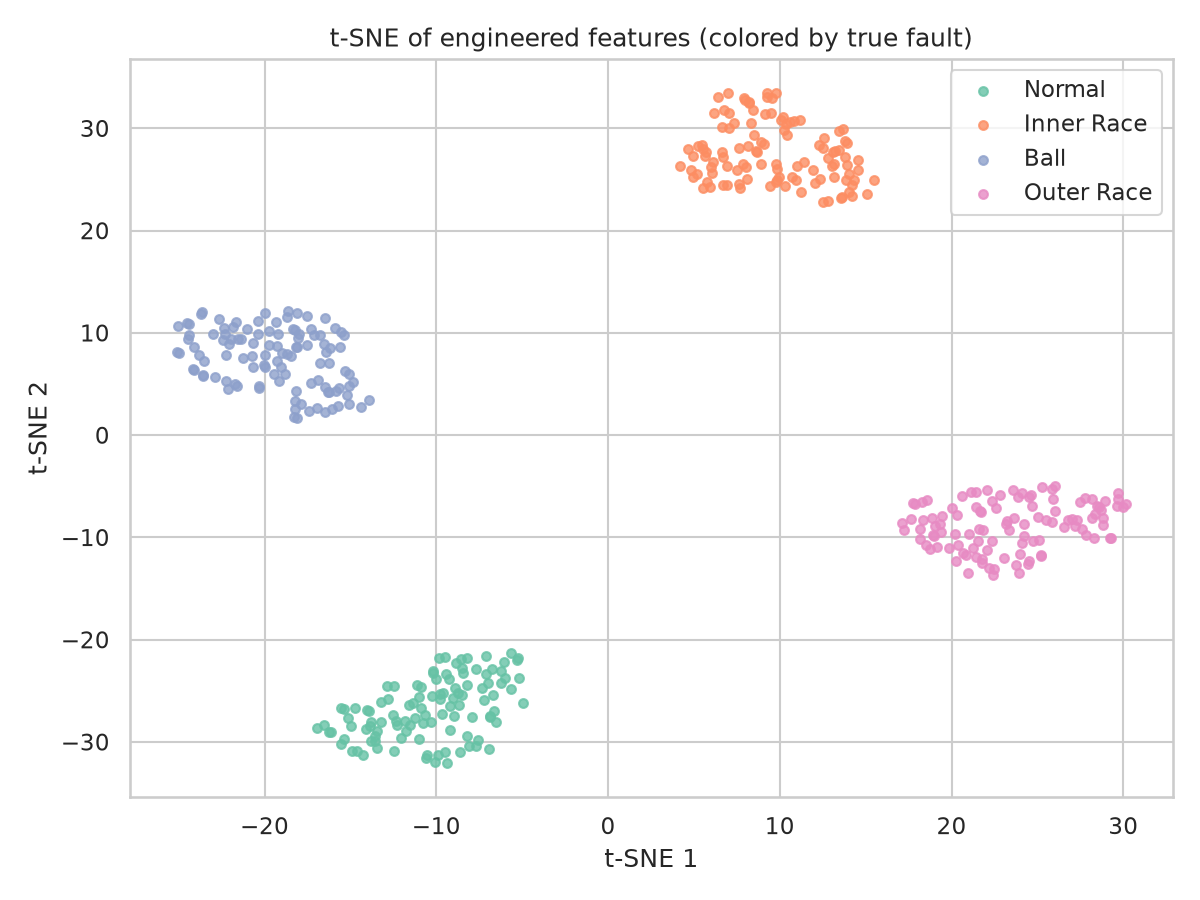

I computed a set of classic vibration features (RMS, kurtosis, crest factor — all interpretable measures of how “impulsive” a signal is) and projected them to two dimensions with t-SNE. The picture explains everything:

Four clean, perfectly separated clusters. At a single operating condition — one load, one speed — each fault’s signature is so distinct that the classes barely overlap. To prove the point, I trained a plain Random Forest on those hand-crafted features (no deep learning at all). It also scored 1.000.

The lesson: 100% wasn’t a triumph of my model — it was a sign the benchmark was easy. And knowing the difference is the whole job.

Asking the bearing to confirm its own diagnosis

There was one more thing I wanted: proof the model was learning real physics, not an artifact. Bearing engineering gives us a beautiful test.

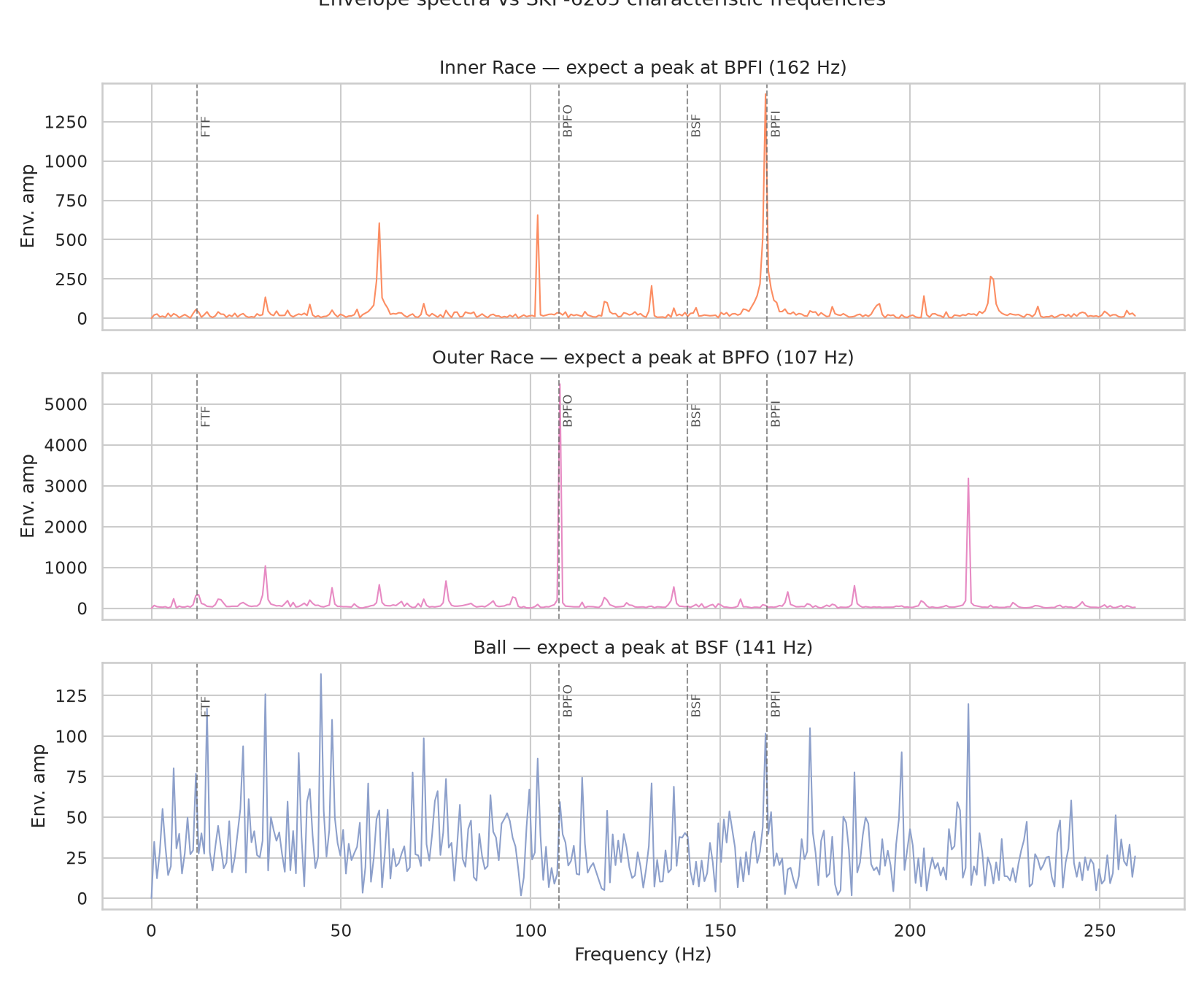

The CWRU drive-end bearing is an SKF 6205, and its geometry fixes the exact frequencies at which each defect “rings” — the ball-pass frequencies of the outer race (BPFO), inner race (BPFI), and so on, all set by the shaft speed. Using envelope analysis (the demodulation technique vibration engineers actually use), I extracted the impact-repetition rate from each fault and checked it against theory:

The peaks land exactly where the physics predicts: the Outer Race fault rings at BPFO (107 Hz), the Inner Race fault at BPFI (162 Hz). The signal carries genuine, explainable diagnostic content — and, honestly, the Ball fault is the subtle one, with a weak envelope signature, which is precisely what bearing theory says to expect. Even the exceptions agreed with the textbook.

What this project actually demonstrates

The deliverable people see is a dashboard that classifies bearing faults. The deliverable that matters is the judgment around it:

  • Engineering it end-to-end — data ingestion, signal processing, a GPU-trained CNN, and an explainable UI.
  • Distrusting a good result until the evaluation earns that trust — and knowing that leakage, not the model, is usually the thing to interrogate first.
  • Explaining it in plain language — to a recruiter with a smoothie, to an engineer with an envelope spectrum.

That last part is the heart of an AI Solutioning Consultant’s job: translating between the business problem (“don’t let the compressor fail”) and the technical reality (“here’s what the data can and can’t tell us, and here’s how I know”).

So I ran the benchmark I’d been saving for last — the genuinely hard one: cross-load generalization. CWRU recorded each fault at four motor loads, so I trained on three and tested on a load the model had never seen — a true change of operating condition, not just a clean split. I expected the accuracy to finally crack.

It didn’t. Leave-one-load-out held at 1.000 ± 0.000, and even training on a single load and testing on the most distant one stayed at 0.998. The physics explains it: a defect’s frequencies are fixed by the bearing’s geometry, which barely shifts across this ~4% speed range, while the per-window normalization removes the amplitude changes the load does cause. What survives is the fault-frequency pattern — exactly what the CNN keys on. Load transfer simply isn’t the bottleneck for naming the fault type.

So the genuinely open problems lie elsewhere: severity grading (telling a 0.007″ defect from a 0.021″ one of the same fault type) and noisy, multi-fault field data. Knowing where the difficulty actually lives — and where it doesn’t — turned out to be the most useful thing the whole exercise produced. It’s the next milestone in the repo.

Try it yourself

If you take one thing from this: when your model scores 100%, don’t celebrate — investigate. The most valuable result in this whole project was the one that looked too good to be true.

Appendix: Glossary of terms

If you’re new to the signal processing or machine learning terminology used in this article, here is a quick guide to help clarify the concepts:

  • Predictive Maintenance (PdM): The practice of continuously monitoring equipment condition (like vibration or temperature) to predict when it will fail. This allows maintenance to be scheduled right before failure, avoiding both unexpected breakdowns and unnecessary routine part replacements.
  • Fast Fourier Transform (FFT): A mathematical algorithm that takes a raw signal measured over time (like a complex vibration wave) and breaks it down into the individual frequencies that make it up. Think of it as a recipe that tells you exactly how much of each “pitch” is in a sound.
  • Spectrogram: A visual representation of frequencies as they change over time. If an FFT gives you the specific notes played in a single chord, a spectrogram is the sheet music for the entire song, showing when each note is played and how loud it is.
  • Data Leakage: A fundamental mistake in machine learning where the model accidentally has access to the test data during training. In this project’s initial approach, overlapping time windows were randomly split, meaning near-identical slices ended up in both the training and test sets. The model essentially “memorized” the answers rather than learning to generalize.
  • t-SNE (t-Distributed Stochastic Neighbor Embedding): A technique used to visualize highly complex data by grouping similar data points together on a 2D map. In this article, it visually proves that the different bearing faults are so mathematically distinct that they form their own isolated “islands,” explaining why the model easily scored 100%.
  • Envelope Analysis (Demodulation): A signal processing technique that strips away the loud, high-frequency “carrier” noise of a machine to isolate and reveal the quieter, lower-frequency repeating impacts — such as a bearing ball repeatedly hitting a crack on the inner race.
  • Cross-load Generalization (Cross-load Benchmark): The process of training a model on data from a machine operating under one set of conditions (e.g., a 1 horsepower load) and testing it on data from a different condition (e.g., 2 or 3 horsepower). Because machine vibrations inherently change under different physical loads, testing “cross-load” proves whether the model actually learned the physics of a failure, or if it just overfit to the exact sound of a 1 HP motor.
